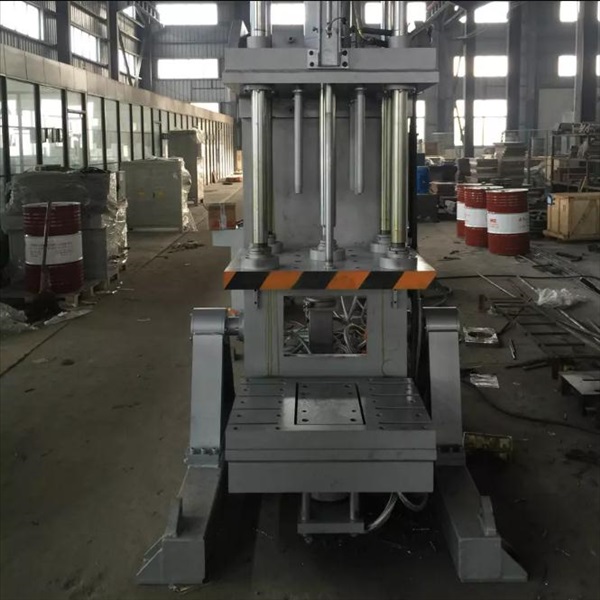

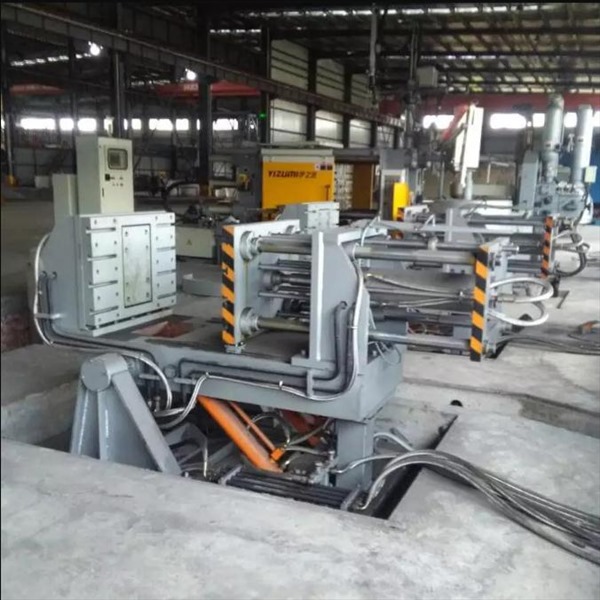

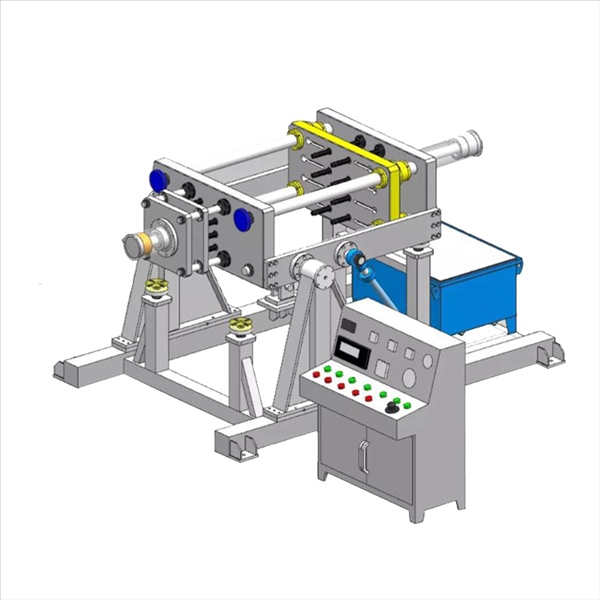

BQ-860 aluminium alloy gravity die casting machine

Application
Widely used in the production of automotive engine intake manifolds, brackets, key types and other castings

Product Features Introduction
Flip angle 0-90° arbitrarily set
Real-time display with human-machine interface
Menu input, wide range of process parameters
Smooth operation, adjustable flip angle
Reasonable design,easy to operate

Parameter	Unit	ZJ750	ZJ860	ZJ1210
Mold installation size	mm	700*500	800*600	1200*1000
The distance between the mold installation platen	mm	400-900	450-1050	550-1350
The mix distance between the two platen	mm	400	450	550
The max distance between the two platen	mm	900	1050	1350
The distance of movable platen	mm	500	600	800
Diameter of main cylinder	mm	125	150	180
The distance of ejection cylinder	mm	100	100	150
Diameter of ejection cylinder	mm	120	125	150
Opening force	KN	122	176	254
Closing force	KN	94.4	138	202
Ejection force	KN	86	94.4	138
Tilt angle	°	0-90	0-90	0-90
The diameter of tilt cylinder	mm	80	100	100

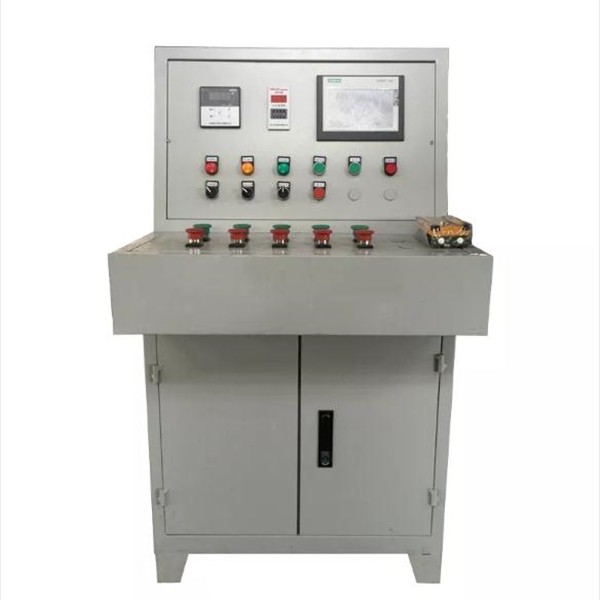

PLC+touch screen		Siemens
Motor power	KW	5.5	15	15
Hydraulic tank capacity	L	400	500	500
